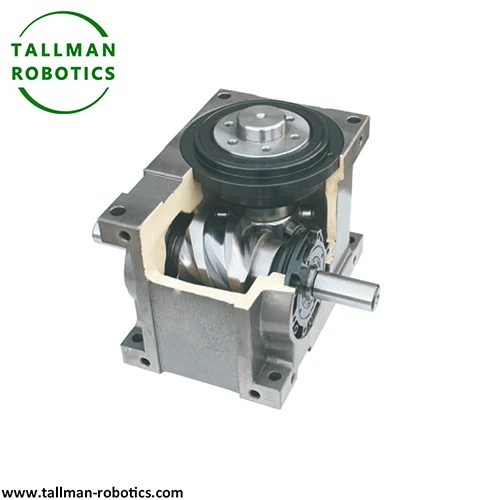

Cam Driven Indexer ni igikoresho co gutanga amakuru gifise ubuhinga bwinshi -gishika ku guhinduranya canke ku guhinduranya umurongo biciye mu gukorana n'ivyo bikoresho. Iyo umugozi w’injiza uzunguruka ubudasiba, umurongo w’ibarabara usunika uruzitiro rutwara, bigatuma umugozi w’isohoka ugira inyigisho y’indexing igenda ihinduka. Mu gihe c’ugutura, urutonde rudasanzwe rwa Cam Driven Indexer rugumya ugufunga gukomeye kw’umurongo w’isohoka. Igikorwa nkuru ni uguhindura inyigisho y’injiza igumaho mu nyigisho y’isohoka ishobora kugenzurwa, kugira ngo igikorwa kibe ukuri kandi gisubirwemwo. Ikoreshwa cane mu bikorwa nk’uguhingura ibintu vyikoresha n’uguhingura ibintu vy’ukuri.

Ivyo Cam Driven Indexer ikora bishingiye ku biranga kinematic vy’uburyo bwa cam, kandi ingingo ngenderwako yayo nyamukuru ishobora gusenyuka mu bice nyamukuru bikurikira: cam, umukurikira, n’ugushiramwo indexing Mu guhingura ibipimo vy’umurongo w’umurongo w’umurongo (nk’uguterura, imfuruka y’uburongozi, imfuruka y’ikiruhuko n’ibindi. driven component ishobora kugenzurwa neza kugira ngo igere ku mibereho itandukanye y’akazi.

Dushingiye ku miterere yayo n’uburyo igenda, Cam Driven Indexer ishobora guca mu bwoko busanzwe bukurikira:

Index ya Cam	Ishusho	Utuntu dutandukanye
Index ya disiki	Igikoresho gifise ishusho y'idisiki-, kandi uwukurikira akenshi ahuzwa n'umurongo w'isohoka. Igisohoka gica gizunguruka bimwe bimwe biciye mu guhindukira kw’umurongo w’ibarabara.	Igishushanyo gikomeye, ukuri kw’indexing gukomeye (gushika kuri ± 30 arc seconds), ubushobozi bukomeye bwo kwikorera umuzigo-, bubereye ku bikorwa vy’ugutanga amakuru bitobito n’ibiciye hagati (nk’imirongo y’ugukoranya n’amamashini yo gupfunyika).
Index ya Cam y'umubumbe	Ico gikoresho gifise ishusho y’igiti, umurongo w’ico gikoresho ukaba ukoreshwa n’imashini ku ruhande rw’inyuma canke ku mwobo wo mu mutima w’ico gikoresho. Igice gitwara gifatanya n’umurongo w’ibarabara biciye mu bizingiti maze kigazunguruka n’ibarabara kugira ngo kigere ku nzira y’uguhagarara kw’umurongo w’isohoka.	Ugutanga amakuru neza, umuvuduko mwinshi (umuvuduko munini wo kwinjira ushika kuri 1500 RPM), ushobora gukora indexing y’ibibanza vyinshi, usanzwe ukoreshwa mu bikoresho vy’umuvuduko munini- nk’imashini zipfuka amacupa n’imashini zikoranya ibihimba vy’ubuhinga bwa none.
Index ya Cam y'isi yose	Igishushanyo ca cam kiragoramye kandi gikora urusenga rw’ahantu n’ibizingiti vy’igice gitwara. Igikoresho co gusohoka gishobora gushika ku guhinduka kw’ibihe bimwe bimwe ku mfuruka nini.	Ubushobozi bukomeye bwo kwikorera umuzigo-, guhangana n’ingaruka, ubuzima buramba, bubereye ku bikorwa bikomeye-vy’umuzigo (nk’ugushiramwo ibikoresho vy’imashini, ibikoresho vy’ubucuzi bw’ivyuma).

Cam Driven Indexer ni igihimba nyamukuru co gushika ku nzira y’uguhagarara neza mu bikorwa vy’ubuhinga bw’inganda. Ivyo ikora biragira ico bikoze ata guca ku ruhande ku bushobozi n’uburyo bw’ibikoresho vy’ibikoresho. Igihe uhitamwo, birakenewe ko umuntu azirikana neza ibisabwa mu bijanye n’ukuri, ubunini bw’umuzigo be n’umuvuduko w’ibintu bisabwa mu bijanye n’ibikorwa vyihariye.

Aha Muri iyi page, turabamenyesha 60 DF Cam Indexers zivuye muri TallMan Robotics, ariyo sosiyete ihambaye mu gukora Cam Indexer, uzobona urupapuro rw’amakuru, amafoto y’ibikorwa,amavedio nk’uko bikurikira:

Kandi Urashobora kuraba iyindi migambi canke gusura amasanamu yacu ya Youtube: https://www.youtube.com/@tallmanrobotics

Cam Driven Indexer ifise umubare munini w’ibikorwa bimenyerewe mu vy’ubuhinga bw’inganda, mu gukora ibintu vy’ukuri, n’ibindi bikorwa kubera ibiranga vyavyo vy’ugushinga ahantu h’ubuhinga buhambaye - n’ugutanga amakuru y’ubuhinga buhamye. Ibi bikurikira ni ibibazo vyihariye vyashizwe mu migwi hakurikijwe inganda n'ivyo bishobora gushika:

Ishami	Gusaba	Ivyabaye	Ihame	Akarusho
Iteraniro ry'ivyuma n'umurongo w'ibikorwa	Imashini y'iteraniro ry'ibice vyinshi	Ikoraniro ry'ibice bitobito vy'ubuhinga nk'ibikoresho, amagere, n'ibifatanya.	Imeza y'akazi izunguruka itwarwa n'igikoresho gifise ishusho ya Cam Driven Indexer kugira ngo gikurikirane igikoresho ku "gushiramwo, gukanda, kugerageza, gukuraho" n'ibindi bibanza vy'akazi. Ico kibanza cose c’akazi kiraheza igikorwa iyo imeza y’akazi ihagaze.	Ivyo bishobora gushika ku masegonda ± 30 y’uruzitiro, bikaba bishobora gutuma habaho uburinganire, uburinganire n’ibindi bisabwa vyo kwihanganira gukoranya ibice, bibereye gukora cane (nk’imirongo y’ugukoranya ibimenyetso vy’imodoka).
Iteraniro ry'ivyuma n'umurongo w'ibikorwa	Ibikoresho vyo kwinjiza ibice vy'ubuhinga bwa none	Kwinjiza no gushiramwo ibihimba vy’ubuhinga bwa none (resistors, capaciteurs, pins) ku bipande vya PCB (ibipande vy’imirongo icapwe).	Ico gikoresho citwa cylindrique Cam Driven Indexer gitwara umukanda utwara canke ikibanza gizunguruka kugira ngo kigende mu bihe bimwe bimwe, kandi kigakorana n’ukuboko kw’ururobo kugira ngo kirangize gufata no kwinjiza ibihimba mu kiringo c’akaruhuko, kigatuma umuntu adashobora guhungabana.	Inyishu y’umuvuduko munini (umuvuduko w’injiza ushika ku 1000 RPM), ihuye n’ivyo inganda zikora ibikoresho vy’ubuhinga bwa none zisaba.
Gupfunyika no gucapura imashini	Imashini yo gupakira yihuta cane	Ivyiyumviro: Gupfunyika ibifungurwa n’imiti mu macupa/mu masaho (nk’ugupfunyika ibiseke, kwuzuza amazi yo mu kanwa).	-Koresha Indexer ikoreshwa na Cam kugira ngo ugenzure ukuntu umukanda utwara ibintu ugaburirwa, ubone ko umukanda utwara ibintu uhagarara neza hagati y’igipande co gupfunyika n’igicuruzwa, kandi ushike ku ntumbero nziza yo gukingira no gukata. -Twara umutwe w'ukwuzuza uzunguruka kugira ngo urangize kwuzuza kw'ingero mu gihe c'uguhagarara, wirinde gusohoka kw'amazi canke ukurenga.	Ugutanga amakuru bimeze neza, nta gunyerera, bibereye ku mirongo yo gupakira ivyihuta cane- (nk’amacupa 300 ku munota canke birenze).
Gupfunyika no gucapura imashini	Uburyo bwo gushiramwo ibikoresho vyo gucapura	Gushira amabara mu gucapura ivyandiko, gucapura igikombe c'impapuro, no gucapura filime.	Indexer ikoreshwa na Cam igoramye itwara ingoma y'icapa kugira ngo izunguruke, kandi igenzura ikibanza c'icapa ryose biciye mu mfuruka z'icapa zategekanijwe kugira ngo ntihagire ukunyuranya mu gucapura kw'amabara menshi-.	Ugusubiramwo ukuri<± 10 arc seconds to avoid pattern misalignment and increase in scrap rate.
Ibikoresho vy'imashini n'ugukora neza	Igikoresho c'imashini ya CNC gikora urutonde rw'imeza	Gutunganya ibikoresho vy’imice myinshi-ku mashini yo gusesa, ku mashini yo gusesa, no ku bibanza vyo gukoreramwo (nk’amabouti y’imirongo itandatu n’imirongo y’imyobo y’umubiri w’amavalve).	Igikoresho co gupima cam gipfutse kiri munsi y’intebe y’akazi, kandi mfuruka y’uguhinduka kw’umugozi w’injiza iragenzurwa biciye mu gukora porogarama kugira ngo haboneke uguhinduka kw’intebe y’akazi mu bihe bimwe bimwe ku bibanza 6, 8, n’ibindi, ata nkenerwa yo guhinduranya n’amaboko.	Ubushobozi bukomeye bwo kwikorera (umuzigo w’ibarabara ushobora gushika kuri toni nyinshi), bushobora guhangana n’uguhungabana kw’uguca, gutuma habaho ukuri kw’ingero z’imashini.
	Igikoresho/igikoresho co guhindura ububiko	Igikoresho cikora gihindura igikoresho c'imashini ya CNC, gutera ikidodo gipfa vuba guhindura uburyo.	Cam Driven Indexer itwara ikinyamakuru c’ibikoresho canke igikoresho co guhindura igikoresho kugira ngo kizunguruke mu bihe bimwe bimwe, kigashira neza igikoresho/igikoresho kigenewe ku kibanza co guhindura igikoresho, kandi kigakorana n’ukuboko kw’ururobo kugira ngo kirangize gusubirira.	Igihe gito co gushiramwo (<0.5 seconds), improving the utilization rate of idle time of equipment.
Inganda z'ibifungurwa n'imiti	Imashini yo kwuzuza no gukingira ibiyayuramutwe	Ukwuzuza amazi n’ugufunga igipfukisho c’aluminium c’amacupa ya penisilini n’amapoule.	disc-shaped cam indexer itwara imeza y'akazi y'uruziga, irimwo "gushiramwo icupa, gushiramwo, kwuzuza, gukingira, no kugerageza". Intambwe y’uguhagarara iraheza ibikorwa vy’ubuzima kugira ngo ntihandure umuti w’imiti.	Ivyo bikoresho bihuye n’ingingo mfatirwako z’ibifungurwa (nk’ivyuma bitagira ibara) kandi biroroshe gusukura no gutera imigera.
Inganda z'ibifungurwa n'imiti	Imashini yo guhingura ibiseke/isokoroti	Gufatanya ibiseke bikomeye, kwuzuza ububiko bw’isokoroti no gukuraho ububiko.	Ico gikoresho citwa Cam Driven Indexer kigenzura ukuntu umukanda utwara ibintu ugenda, kigaheza intambwe nk’ugutera ibikoresho bitagira agaciro, gukonjesha no guhingura, gukuraho ibibumbano mu kiringo c’akaruhuko, kugira ngo igiseke cose gifise igishushanyo kimwe.	Gushikama neza mu bihe vy'umuvuduko muto-n'umuzigo munini, kwirinda gukevya kw'ububi no guhingura utunenge.
Ibikoresho vyo kumenya no gutoranya	Imashini yo gusuzuma ukuntu igicuruzwa kigaragara	Gutahura ubumuga bwo ku ruhande rw’ibihimba vy’ubuhinga bwa none (nk’ibice vy’umubiri, ibifatanya) n’ibihimba vy’ukuri (imirongo, ibihengeri, itandukaniro ry’amabara).	Igikoresho citwa cylindrique cam indexer kijana urubuga ruzunguruka kugira ngo rujane ibikoresho bikoreshwa mu buryo bukurikiranye ku kibanza co gusuzumiramwo ibintu bigaragara. Iyo ihagaze, irasesangurwa hakoreshejwe gufata amafoto hakoreshejwe kamera, kandi ibintu bidahuye -bikurwamwo n’uburyo bwo gutoranya.	Ikosa ryo gushiramwo ivy’ugucapura rikwiye kuba riri munsi ya 0.01mm kugira ngo ahantu h’ugutahura ntihabe hatari ho.
Ibikoresho vyo kumenya no gutoranya	Icupa ryo gukingira imashini	Gukomeza no gufunga ibipfukisho vy’amacupa y’ibinyobwa n’amacupa y’ivyo kwisiga.	Cam Driven Indexer itwara icapa kugira ngo kizunguruke mu bihe bimwe bimwe, kigaca mu bibanza vy'"ugutahura umuvuduko w'umuvuduko, ugutahura umuvuduko w'umuyaga, no gushiramwo ikimenyetso" mu buryo bukurikirana, maze kigashika ku nzira yo kumenya ivy'umuvuduko w'amazi biciye mu mibumbe y'ubuhinga.
Itabi n'inganda z'umuco	umupakira itabi	Umurongo wikoresha wo gukora amasandugu y'itabi, gushirako ikimenyetso c'itabi, no gupfunyika amasandugu y'itabi.	Cam Driven Indexer ni yo igenzura ukuntu umurongo ujana itabi ugenda uhagarara, kandi ikorana n’uburyo bwo gupfunyariza kugira ngo irangize guhingura isandugu y’itabi, kugira ngo urupapuro rwo gupfunyika itabi rube rujanye n’itabi ata n’imwe ipfutse.	Maintain low noise operation even under high-speed conditions (>500 z’amapaki/umunota).
	Imashini yo gukoranya ibice vy'isaha	Ikoraniro ryiza ry'isaha y'inyigisho n'ibiganza.	Igikoresho gifise ishusho ya Cam Driven Indexer gifise ishusho ya micro disc -gitwara imeza y’akazi kugira ngo gishike ku guhindura ibice vy’urugero rwa milimetero ku bibanza vyinshi, kandi gikorana n’uburyo bwo kubona ibintu kugira ngo kirangize gukoranya ibintu vy’agaciro kanini.	Ikosa ryo gushiramwo<5 microns, meeting the ultra precision requirements of the watch industry.

Agaciro nyamukuru k’umugabane ukoreshwa na cam ni uguhindura inyigisho ikomeza mu nyigisho ishobora gucungerwa, kandi ibikorwa vyayo bitegerezwa gushitsa ibisabwa bitatu bihambaye:

1. Gushira ahantu habereye: Kumenya neza ko ahantu igikoresho kiri hahuye mu kiringo c’uguhagarara;

2. Ishikamye kandi ikora neza: Imenyereze gukora ibikorwa vy’ingendo nyinshi no kugabanya ukunanirwa kw’ibikoresho;

3. Ukwizigirwa kw’ubuhinga: Gukora neza igihe kirekire mu bihe vy’akazi nk’inkungugu, ukunyiganyiga, n’umuvuduko munini.

Kuva ku bikoresho vy'imashini bikomeye-bikomeye gushika ku gukoranya ibihimba vy'ubuhinga bwa none, Cam Driven Indexer ni "umurongo w'ubugenzuzi bw'ukuri butaboneka" mu bikoresho vy'ubuhinga bwa none.
